Ball Sockets

Specification

  • Overview

    • Standardised products
    • Several fastening variants feasible
    • Different hole diameters (6 mm, 8 mm and 10 mm)
    • High pull-out forces (> 400 NM) and low installation forces ( <100 NM)
    • Perfectly attuned to the adjustment systems

Torsten Fischer

Account Manager


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

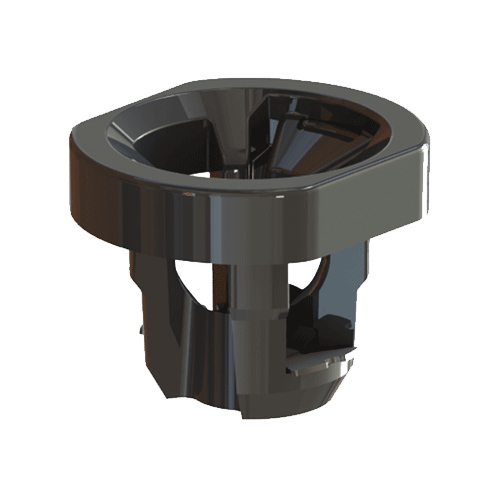

Ball Sockets

EJOT® ball sockets are available in different sizes (hole diameter of 6 mm, 8 mm and 10 mm) and with various fastening possibilities. They are attuned to the respective adjustment systems and reach or even exceed the forces demanded by the OEMs. The different design versions allow the use of the ball sockets in a variety of places in the headlamp area. Thus, specifications of a defined installation space can be met.
