DELTAsert®

Specification

  • Overview

    • DELTAsert® made of aluminium for thermoplastics and thermosets (Size M6)
    • DELTAsert® P made of plastic for soft thermoplastics (for DELTA PT® 45 & 50) other dimensions on request
    • Easy and reliable direct assembly; no complex setting procedure necessary
    • Low weight due to the use of aluminium instead of brass
    • High pull-out force due to large flank coverage
    • Very high loosening torque due to self-tapping DELTA PT® thread

Hotline

Applications Engineer


CAD & more on ejot.com

With the one-time registration we provide in this area CAD data in various formats as well as PDFs of the technical drawings of our products DELTA PT®, SHEETtracs® and ALtracs® Plus.
Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

Alternative insert solution made of aluminium

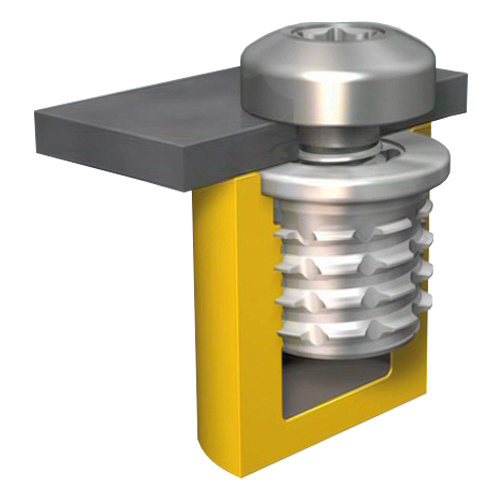

Today the demanded cost and weight reductions for most designs often require alternative methods to the common fastening solutions. For example inserts are still used for many applications, which indirectly fasten components with a costly post-moulded insert and a metric screw. An alternative to this laborious method is the new aluminium EJOT DELTAsert® which permits a reliable self-tapping installation into highly loaded thermoplastic components. Previously, this was only possible with pre or post moulded inserts.

Alternative insert solution made of plastic

For the realisation of a stable fastening point the material strength of components made of thermoplastics is often insufficient. Even optimisations such as a larger screw diameter, wall thickness increase or increased installation depth are only partially suited to solve this problem. For these difficult conditions EJOT has developed the innovative plastic insert solution DELTAsert® P which, combined with the EJOT DELTA PT® screw, facilitates process reliable fastening.

Easy installation

The EJOT DELTAsert® is screwed into the prepared plastic component with a conventional screw driver with torque limiter, additional controls are not necessary. The torque can be documented with the assembly unit. This process is finsihed in ca. 2 seconds. The subsequent assembly of the clamping part to the DELTAsert® with the EJOT ALtracs® Plus 60 screw is also self-tapping. For the version with metric M6 internal thread a metric screw can also be used as an alternative. An easy and process reliable assembly is guaranteed in both cases.
