Self-drilling screws

EJOT self-drilling screws connect components in one work step: they drill, form the thread and fasten. This reduces the installation time, saves tool changes and costs for drills. The self-drilling screws are completed by an optional pre-assembled sealing washer.

​​​​​​​EJOT self-drilling screws are available in stainless steel for weather-exposed areas and in zinc-plated steel for unweathered areas.

EJOT self-drilling screws JT3/JT6 made of stainless steel with hardened drill point

The EJOT self-drilling screws JT3 made of A2 stainless steel with hardened drill point made of zinc-plated steel are the economic solution for the fastening in unweathered areas. They are suitable for steel or aluminium components and are offered with a maximum drilling capacity of 18 mm. For special requirements, we offer the EJOT self-drilling screw JT6 made of A4 stainless steel with hardened drill point.



EJOT self-drilling screws JT2 made of zinc-plated steel

The EJOT self-drilling screws JT2 made of case-hardened zinc-plated steel are the economic solution for the fastening in unweathered areas. They are suitable for steel components and are offered with a maximum drilling capacity of 18 mm.

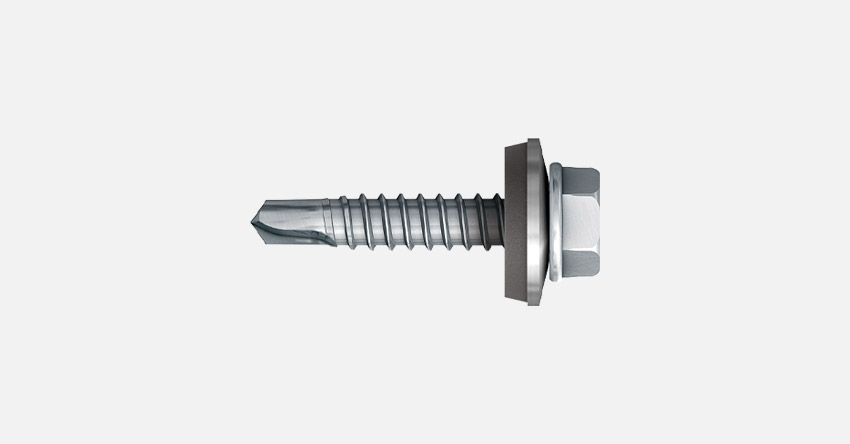

EJOT self-drilling screws JT4/JT9 made of A2/A4 stainless steel

The EJOT self-drilling screws JT4/JT9 made of A2/A4 stainless steel are particularly suitable for fastening and fixing elements for rear-ventilated facade systems. They are the ideal solution to form floating and fixed points on substructures of rear-ventilated facades. With a drilling capacity of up to 6 mm, they are above all suitable for aluminium components.

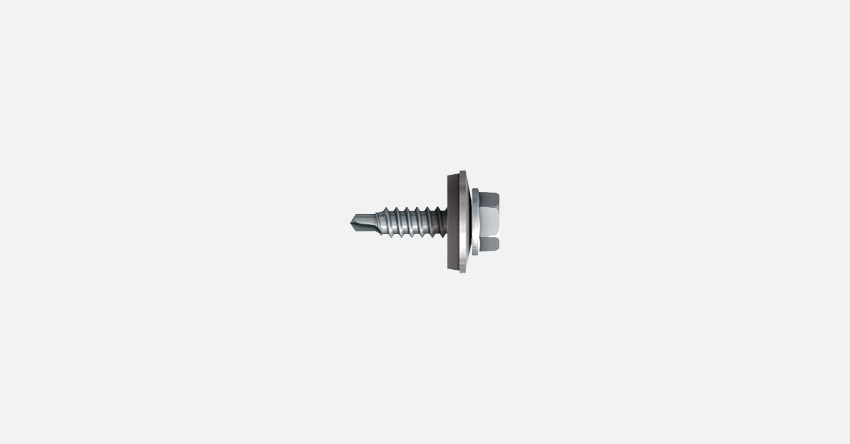

EJOFAST® self-drilling screw JT3-2H-4,8

EJOFAST® screws – Clever & Clean

EJOFAST® screws are self-drilling screws without the conventional cutting bit. Due to the point geometry and the special thread form, the EJOFAST® screw not only fastens with reduced swarf and at high speed, it also features excellent clamping properties.

The EJOFAST® self-drilling screws are particularly suitable for the fastening of thin sheets. They are available in case-hardened zinc-plated steel and in A2 stainless steel with hardened drill point.

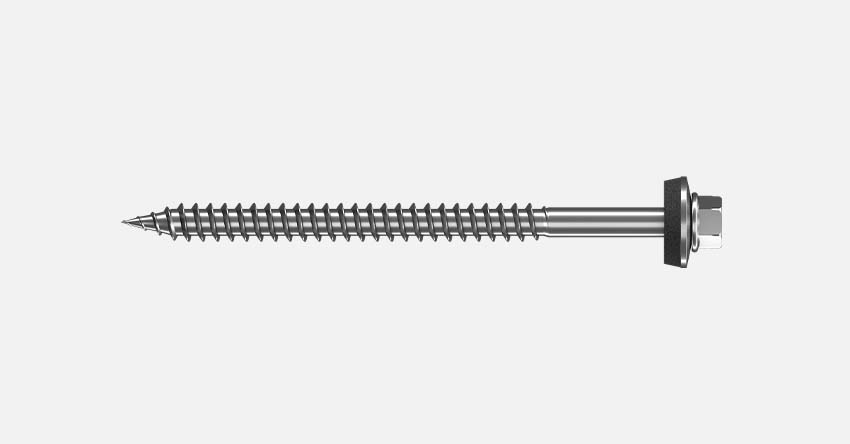

Self-drilling screw JF3-Plus-6,8

EJOFAST® self-drilling screw JF3-Plus-6.8

The EJOFAST® self-drilling screw JF3-Plus-6.8 is particularly suitable for the fastening of sandwich panels and trapezoidal profiles to timber substructures.

​​​​​​​The optimised and unique tip geometry of the new EJOFAST® Plus self-drilling screws enables a much safer application to the surface due to the optimised and slim tip. Displacement or slipping is almost impossible. At the same time, the load-carrying capacity values have been improved once again.

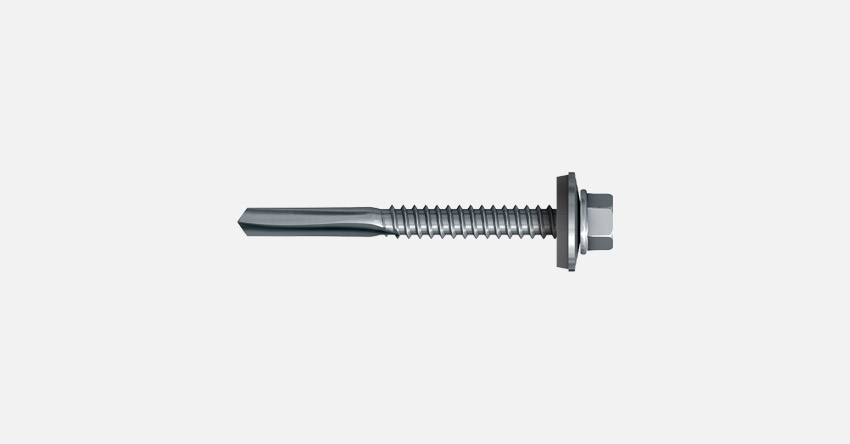

Challenge: JT3-18 vs. JZ3-6.3

Watch the video on how quickly the drill screw is screwed into 16 mm thick steel compared to the sealing screw.
