Technical rules for flat roofs

Flat Roof Guidebook – Part 6

This sixth and final part of our flat roof guidebook discusses the technical rules for flat roofs, choosing right type and number of fasteners as well as the issue of corrosion.

Type and number of fasteners

Three regulations are key when selecting the fasteners and the design of the mechanical flat roof fastening:
  • ​​​​​​​Flat roof guideline (as of May 2019): Addendum to the state of the art by Deutsche Dachdeckerhandwerk (German Association for the Roofing Trade)
  • DIN 18531 (as of July 2017): Waterproofing of roofs, balconies and walkway, describes the current state of the art
  • DIN 18336 (as of September 2019): German construction contract procedures (VOB) – Part C, regulates waterproofing work.​​​​​​​

​​​​​​​With regard to the number of fasteners to be used, the statements in the rules and regulations are to an extent not entirely uniform. The Flat Roof Directive and Part 3 of DIN 18531 specifies that, at least two fasteners should be used per square metre.

Also with regards to the type of fasteners, there is diverse information in the different regulations about the material of the fastening element. DIN 18531 splits roofs into two application classes. In the application class K1 a standard design is defined. Application class K2 describes a high-quality design. Application class K2 can be useful, for example, for high-quality building use, skyscrapers, roofs and roof surfaces with solar installations or building services equipment. Point 6.14, Wind suction protection, specifies that in the event of mechanical fastening, corrosion resistant fasteners should be used in application class K2.

DIN 18336 belongs to VOB Part C. VOB Part C covers the general technical technical contract conditions for building services which have to be agreed by the client and contractor. All in all, VOB Part C includes numerous individual standards. In its latest version dated September 2019, point 3.2.1.8 of DIN 18336 states that only corrosion-resistant fasteners are to be used as mechanical fasteners.

According to the Flat Roof Guideline, corrosion-resistant fasteners should be used in repairs when fasteners are screwed through existing thermally insulated roof assemblies. No statement is made on the general use of corrosion-resistant fasteners. We recommend the use of corrosion-resistant fasteners for repairs in bituminous or soaked roof structures.

Correctly understanding the regulations

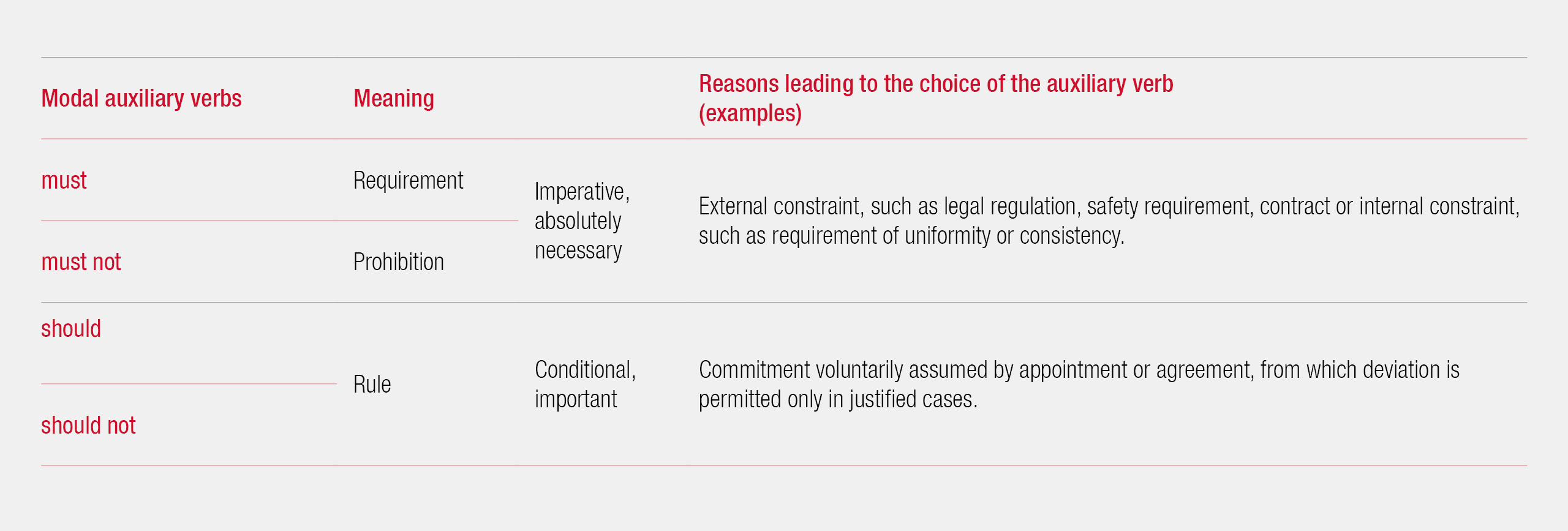

​​​​​​​Often the modal verbs used are a cause for discussion. Here we need to point out that the verb "should" usually means that a voluntary commitment is assumed. It is therefore a regulation which the German Association for the Roofing Trade imposes on itself as the publisher of the "Specialist Rules for Waterproofing." It should also be clear to everyone how an independent expert will react in the event of damage, if this rule is deviated from.
Correctly understanding the regulations

Corrosion resistance and protection

Fundamentally, the regulations distinguish between corrosion-resistant and corrosion-protected. But what is the difference exactly?

Corrosion resistance is a specified term in DIN EN ISO 8044. It describes the ability of a material to fulfil its function in a given corrosion system, without drawbacks due to corrosion. If a specifier, a standard or regulation requires that a component should be "corrosion-resistant", this means that the material this component is made from, does not suffer from corrosion damage under the given boundary conditions. Then it is not permitted to use a material with coatings or finishings. Stainless steels are specified at national level in Germany in the Z-30.3.6 dated 5th March 2018 and are summarised in an overview.

​​​​​​​Corrosion protection is a term not specified in standards. It describes that components are protected from environmental conditions with the help of coatings and finishings. For applications on flat roofs, the minimum requirement on corrosion protection is specified in the ETAG 006 or in EAD-030351-00-402-2029, and is defined by the Kesternich test as per DIN 50018.
Corrosion protection
Our separate, three-part corrosion guide also goes into greater depth on the topic of corrosion.
​​​​​​​

Flat roof guideline – Planning's what matters!

In our Flat roof guideline we have provided information about the basics of planning, construction, possibilities for position securing as well as pre-dimensioning and the winduplift test. Finally, the relevant technical rules in flat roofing and the topic of corrosion have been addressed. We will be happy to advise you on your next flat roof project. Do you have any questions or a specific problem? Contact us!
